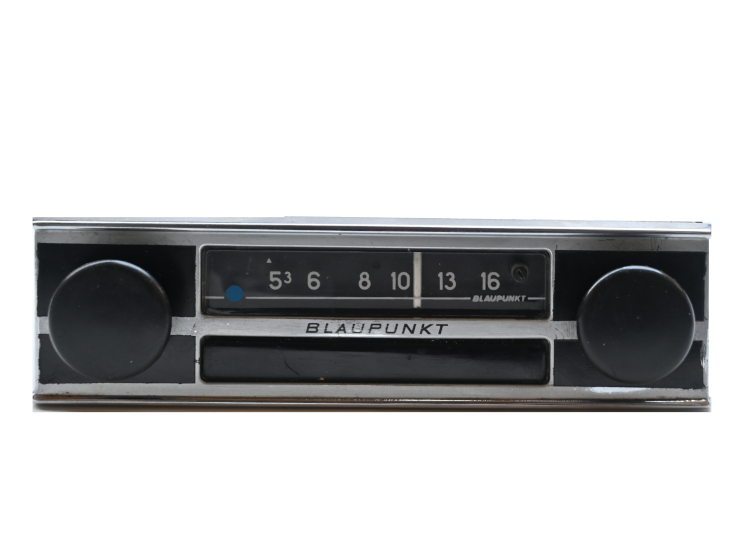

Blaupunkt

We convert your radio to a Bluetooth receiver with a class-D amplifier. The radio is cleaned and where neccessary retored. The internals are removed and replaced by a Bluetooth 5.0 and a Texas Instrunents amplifier and a stabilized power-rail for te needed voltages is installed. All this is mounted on semi-hard foam in order to cope with British and Belgium road conditions. For the same reason everything that is screwed or bolted is secured with Loctite. Various filtering measures are taken in the power rail. Basically over-engineered, but different cars might have different effects on noise generation. For safety reasons everything is done to keep the thermal effects of the amplifier chip witin limits and a 10 amp fuse lead is installed with an easy IP68 connector. For the same convenience 4 speaker binding posts are fixed. Either at the back or the side(s), depending upon your wishes.

Only the on-off switch and light stays functional.

Specifications

Power output: 2 x 25 watts at 4Ω

Frequncy response: 2 x 25 watts at 4Ω

Signal to Noise Ratio: 102dB

crosstalk: -100dB

THD at half power: 0.1%

Bluetooth: 5.0

Included in the package:

2 x 2 meters Oehlbach 2.5mm Oxygen Free Copper speaker cable

wireless remote control with glue pad and steering wheel clamp

10 amperes fused lead cable with IP68 connectors

Pricing:

Conversion: €298

Radio from our stock: €398

Added DAC: €98

Extra line in/out: 3.5mm jack: €40, RCA: €60

Shipping from Italy depends of country of destination, All prices include IVA/VAT. Shipment to Great Britain are accompanied by a declaration of original manufacturing in Italy, which prevents you from paying import duty.

Specifications may change at any moment without prior notice.
